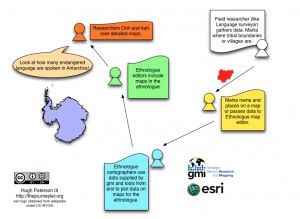

The importance of knowing about the Datum recently came to my attention as I was working with GIS data on a Language Documentation project. We were collecting GPS coordinates with a handheld GPS unit and comparing these coordinates with data supplied by the national cartographic office. End goal was to compare data samples collected with conclusions proposed by the national cartographic office.
So, what am I talking about?
GIS data is used in a Geographical Information System. Basically, you can think of maps and what you might want to show with a map: rivers, towns, roads, language features, dialect markers, etc. Well, maps are shapes superimposed with a grid. And coordinates are a way of naming where on a particular grid a given point is located.
A datum is the name of a specified grid. That's right, not all grids are the same. Different maps might overlay the same shape with different grids. So, saying that a given point is at xºN and yºW is not enough. There are two more things which need to be included in the data (or meta-data) your datum and the epoch of the datum. Datums are the names of grids, and from time to time these grids are adjusted. So, when they are adjusted they are given an epoch value (usually a year or a date). So, detailed, interoperable GIS data needs to tell:
- Where on the grid a point is (Coordinates).
- Which grid is being referenced.
- When in time that grid is being referenced. (This is not necessarily when the measurement was taken but rather which version of the grid is being referenced. Though when the measurement was taken should also be indicated separately.)
This information about a datum is vital for a project which is creating data with the intent or the foreknowledge that the data might be combined or mixed with data from other projects.
Which Datum to use in publications?
In any publication, but specifically Language Documentation publications, there comes a time where the authors have to decide whether to publish in the local venues and measurements for local accessibility or the larger global venues. For instance when interlinearizing texts of a minority language where there is also a national language, the person interlinearizing the text has to decide whether to interlinearize the text using the national language, or a more global language like English. This sort of a decision for texts has several factors which go into it. Likewise when choosing which datum and epoch to use there are several decisions which go into that as well. Regarding which datum to use there are two major factors to consider:
- GIS information is already in a technical field which nobody speaks natively.
- Freely available tools do use the international de facto standard.

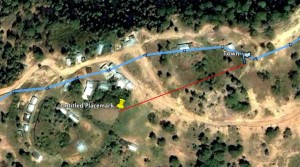

In the case which I mention in the first paragraph, we were mixing data from different datums, so we needed to choose one datum to work with. Because the national datum was not the global standard and freely and publicly available tools like Google Earth and Google Maps use the global de facto standard WGS84 we chose to use WGS84 and to convert data points from the national datum to WGS84. But this meant that we had to convert mass amounts of coordinates from one datum to another datum.
What about converting between datums?
Not all GIS coordinate converters are the same. There are variations in the margin of error in conversion, and there are also variations in the methodology of the conversion (variation in methodology is not bad, but rather a necessary thing when considering that there are different types of grids). It is important to cite the conversion tool, the date of the conversion and the method the tool uses. If the conversion is done manually, cite the methodology on how the conversion was done.
Without being a geologist or a cartographer, I recommend internet based conversion utilities hosted by national cartographic institutions over those at academic institutions, provided that it had the features (conversions) I needed.
Here are a few resources which I have found helpful. However, some of them convert between Datums and other just convert between coordinate notation formats:
- Convert Lat/Lon to UTM Coordinates or UTM to Lat/Lon Coordinates
This utility from the Resource Coordination Network, a collaboration between Montana State University and Yellowstone National Park, is no longer maintained and is not accurate for converting coordinates in the southern hemisphere. But does convert between several datums and several coordinate notations.
http://www.rcn.montana.edu/resources/tools/coordinates.aspx
- Degrees, Minutes, Seconds and Decimal Degrees Latitude/Longitude Conversions
This utility permits the user to convert latitude and longitude between decimal degrees and degrees, minutes, and seconds. For convenience, a link is included to the National Geodetic Survey's NADCON program, which allows conversions between the NAD83 / WGS84 coordinate system and the older NAD27 coordinate system. NAD27 coordinates are presently used for broadcast authorizations and applications.
http://www.fcc.gov/mb/audio/bickel/DDDMMSS-decimal.html
- Convert Coordinates - Calculate a position in a variety of formats
Earthpoint is a paid service which adds some data handling features to Google Earth. They have a free service which allows a user to enter a latitude/longitude or position. The service will then convert the position to the desired notation system. The service supports the following: Lat/Lon, UTM, UPS, MGRS, USNG, Georef, and State Plane. The service uses the WGS84 datum.
http://www.earthpoint.us/Convert.aspx
- Coordinates conversion
Conversions of latitude and longitude geographic coordinates, in various formats (decimal, sexagesimals DD DM DMS) degrees minutes seconds. Useful to convert data for GPS (Global Positioning System) and trasforms units of measurement. You can also search the coordinates on map by clicking search icon (web page Earth coordinates). http://www.sunearthtools.com/dp/tools/conversion.php
Some notes about coordinate notation
There are two basic ways that GPS coordinates are notated. (There are many notation formats which are often a hybrid of these two basic systems of notation, additionally other coordinate systems such as UTM which can and do use other notation formats.) The two notation types used in GPS coordinates are Decimal and Sexagesimal.
- Decimal has decimal degrees -73.9874°.
- Sexagesimal has degrees, minutes, and seconds -73° 59′ 14.64″ .
Let's take a look at the constituents of what a coordinate is and then at several notation systems in use. Basically, there are three parts to the coordinate. (A coordinate is a point on the grid is where two or more coordinates intersect as would be the case with the addition of altitude.) This roughly corresponds with the X (North-South/Latitude), Y (East-West/Longitude) and Z (Altitude) axis on a three dimensional grid.
A coordinate has components in Sexagesimal notation which are known as: Arcdegrees (degrees), Arcminutes (minutes), and Arcseconds (seconds).
Using the latitude N 41 53.4168 as an example for a mixed notation between decimal and sexagesimal, we can represent this same location as N 41° 53′ 25.008″ in Sexagesimal notation, or as 41.89028 in decimal notation. All three notations refer to the same location. Using various notations in the same project can be a source of confusion (not recommended when avoidable). In a Language documentation project to be clear to consumers of the data, use the same notation consistently throughout the project (it helps a lot when trying to do geographic based visualizations of the data collected.). Don't ignore the decimal point (or the spaces), if you are compiling coordinate data from sources which use those notation formats. If a decimal point is there, then is could be that the seconds are represented as a fraction of the minutes, or it could be that the seconds are expressed as a decimal. If it's not there, then the third value is the number of seconds. For example:
N 41 53.4168 is read as 41 degrees and 53.4168 minutes North of the Equator.
To convert this to the second form, simply take the fraction, .4168, and multiply it by the number of seconds in a minute .4168 x 60 = 25.008
Thus, 53.4168 minutes is the same as 53 minutes and 25.008 seconds, or simply 53′ 25.008″.
The third format, 41.89028 is just the degrees as a pure decimal number. Take the fraction, .89028, and multiply it by the number of minutes in a degree. Thus, .89028 x 60 = 53.4168 minutes.
The following table shows some of the variation in the GIS Coordinate Notation Types.
| Type Abbreviation | Title | Notation | Comments |
| These examples are compiled from Sunearthtools.com and Earthpoint.us. |
| DD | Dec Degs Micro | 38.959390N 95.265483W
dd.dddddd dd.dddddd | Without the degree symbol. |
| DD | degrees.decimal° | 41.89028° N 12.49248° E | N, S, E, W are all marked. Sometimes these values are not marked with alpha characters but are assumed to be marked with a + or a - sign. And sometimes the + sign is omitted. |
| DD | | 41.89028 , 12.49248 | Comma separated with a trailing space. |
| DM | degrees° minute.decimal’ | 41° 53.4168′ , 12° 29.5488′ | |
| DM | GPS | N 41 53.4168 E 12 29.5488 | This is a common GPS output format which does not use symbols but does separate the degrees and the minutes with a space and marks the hemisphere with an alpha character (prefixing rather than suffixing). |
| DM | Dec Mins | 3857.5634N09515.92890W
ddmm.mmmm dddmm.mmmm | No spaces between degrees and minutes or º and ´ symbols. The seconds are not expressed individually but rather as a fraction of minutes. |
| DMS | degrees°minute’seconds” | 41° 53′ 25.008″ N 12° 29′ 32.928″ E | |
| DMS | Dec Mins Secs | 385733.804N0951555.739W
ddmmss.sss dddmmss.sss | No spaces between degrees, minutes and seconds. Seconds are expressed as a decimal. |
| UTM | Universal Transverse Mercator coordinate system | 15S 303705mE 4314711mN | Additionally there are other formats of notation like: UPS, MGRS, MGRS Polar, USNG (identical to MGRS), Georef, and State Plane. |
GIS Coordinate Notation Types
Some notes about altitude
Altitude is an important factor in plotting and map making for several reasons:
- Altitude can reveal data points which can be used in an analysis considering anthropological factors. i.e. when considering the migrations of people groups or trade routes to consider where speakers of different languages might have had contact or mixing.
- In an more technology based sense: because GPS technology works off of the principal of triangulation having an accurate reading on altitude can affect the coordinate location of North, South and East, West. This is often know as 2D v.s. 3D accuracy .
- There is also the basic question of what is altitude? There are a multitude of different ways that altitude can be measured .
- geometric altitude
- GPS altitude
- INS altitude
- pressure altitude
- geopotential height
Difference in Ways of measuring Height or Altitude
Several different shapes
Three shapes:
- The Geoid
- The Spheroid
- The Ellipsoid
The Ellipsoid
An ellipsoid is a three dimensional object with three possible radii. One for the X-axis, one for the Y-axis, One for the Z-axis. None of these radii must be the same length. However, if all three radii are equal, the solid body is a sphere; if two radii are equal, the ellipsoid is a spheroid.

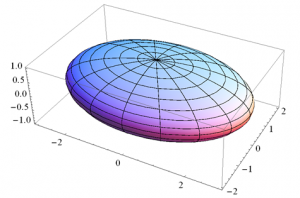

An Ellipsoid
The Spheroid
A
spheroid is an ellipsoid with two axis of equal length.

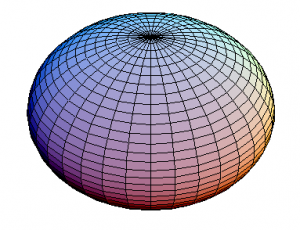

Oblate Spheroid
The Geoid
The
Geoid is that equipotential surface which would coincide exactly with the mean ocean surface of the Earth, if the oceans were in equilibrium, at rest (relative to the rotating Earth), and extended through the continents (such as with very narrow canals). According to C.F. Gauss, who first described it, it is the "mathematical figure of the Earth", a smooth but highly irregular surface that corresponds not to the actual surface of the Earth's crust, but to a surface which can only be known through extensive gravitational measurements and calculations.
Geoids are different from Spheroids
Defining 0 Altitude
Difference in Ways of measuring Height or Altitude
Notice based on the above diagram that if the someone was standing on the top of the green line with a GPS receiver there would be different measurement from the green line to the blue line (Geoid) than there would be from the green line to the red line (Ellipsoid). So basically as I understand it, a datum like which is the basis of measurement with GPS devices and is used with WGS84, is based on a spheroid and is related to a mathematical model on a consistent geometrical shape. However, most topographical maps are based on a datum which usually based on a Geoid type shape. This can create a noticeable difference between
Topographical maps and
GPS readings. This also explains why sometimes sea level is not 0 altitude when taking a GPS reading .
The two very different approaches are of the nature that the GPS system is based first off of a mathematical model and then the dirt falls where it may. Whereas the Topographical model for representing things says: "Where is the dirt? let's show that on the map."
